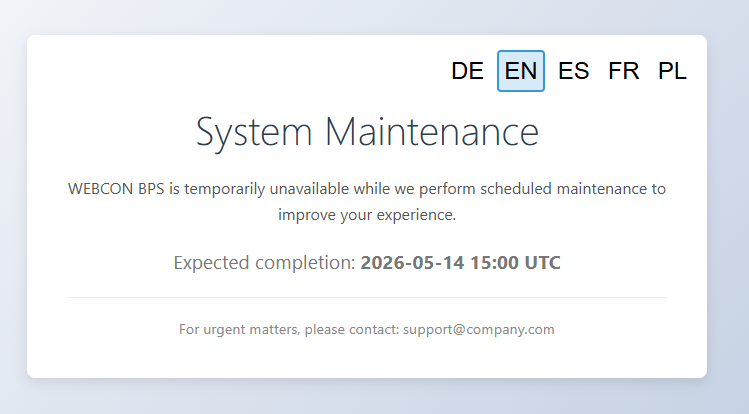

Displaying a maintenance page during WEBCON BPS updates

Overview

Whenever I update a WEBCON BPS environment, users who try to open the BPS Portal run into a generic IIS error. That’s not a great experience. A dedicated maintenance page is a simple way to communicate what is happening, when the system will be back, and who to contact for urgent matters, without touching BPS at all.

Implementation

General

The implementation consists of two parts:

1. A PowerShell setup script
   This creates the IIS sites and copies the bindings from the existing WEBCONBPS site.
2. A static HTML maintenance page
   Served by a separate IIS site.

The files

IIS setup script

The PowerShell script needs to run once on the web server as Administrator. It reads the HTTPS binding from the existing WEBCON BPS IIS site (certificate hash, store, host header, IP address), creates a new IIS site at the configured maintenance port, assigns the same certificate, and sets index.html as the default document. The script accepts a few parameters for customization:

Script name: setup-maintenance-site.ps1

Parameters (all optional):
  -SourceWebsiteName      IIS site to copy the HTTPS binding from  (default: "WEBCONBPS")
  -MaintenanceWebsiteName Name for the new IIS site                (default: "MaintenancePage")
  -MaintenancePort        Idle port for the maintenance site        (default: 4443)
  -MaintenancePath        Physical path for the HTML files          (default: C:\inetpub\MaintenancePage)

Run with defaults:

.\setup-maintenance-site.ps1

Or override individual settings:

.\setup-maintenance-site.ps1 -SourceWebsiteName "MyWEBCONSite" -MaintenancePort 8443

Make sure to unblock the downloaded files from the properties dialog of the file.

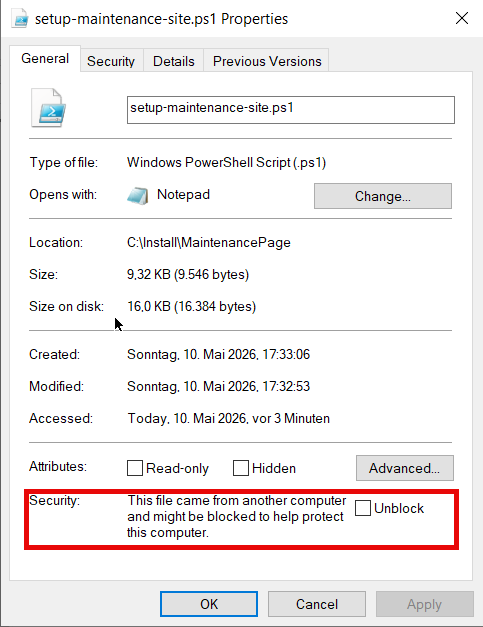

Unblock the downloaded files to prevent any issues.

Otherwise you may run into an error when executing the PowerShell script.

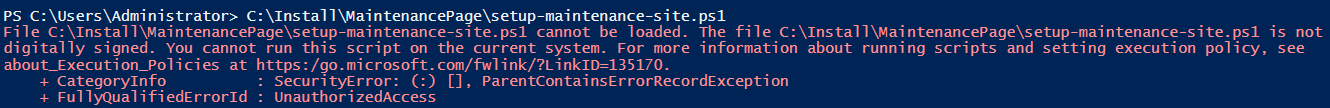

An error which is thrown, if you want to execute the blocked file.

This is a result when running the script without any parameters:

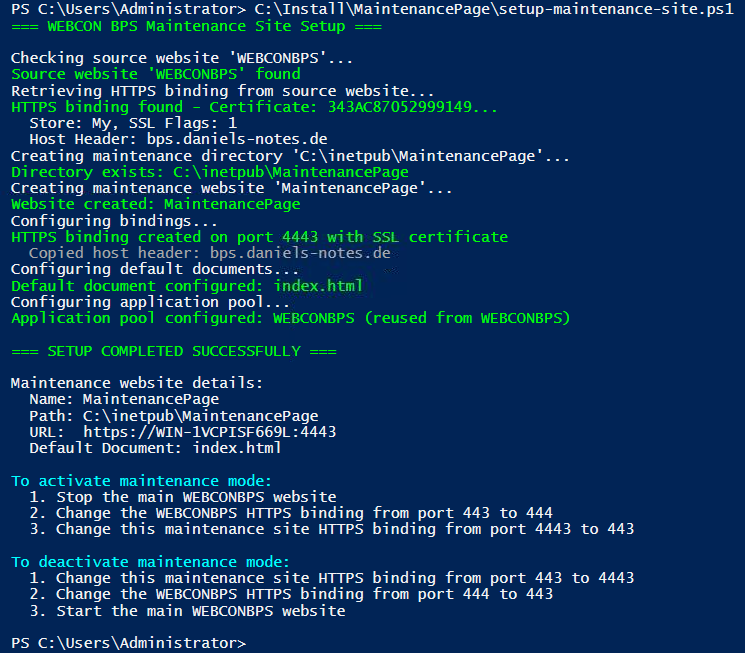

Script has been executed successfully.

You can also verify the settings in the IIS.

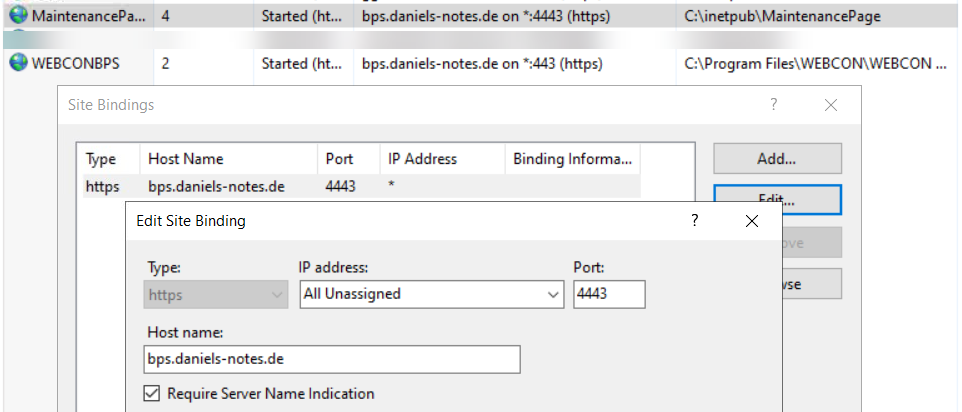

Maintenance page has been created.

Tip: Set this up right after your initial BPS environment deployment so the maintenance site is ready before you ever need it.

Remark If you execute the script a second time, the script will remove any created elements and recreate them, except the created folder in the file system.

Maintenance page (HTML)

After running the script, copy index.html into MaintenancePath. This isn’t done automatically as you have to modify the content anyway.

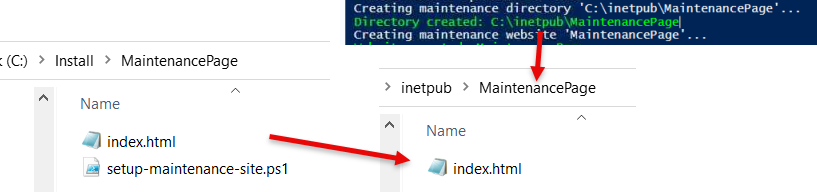

Copy the index.html to the directory of the maintenance page

At the bottom of the file you can configure:

1. Supported languages
2. Header
   This value is required.
3. A message for explaining the downtime
   This value is required.
4. Contact information
   It can be left empty.
5. A message for expected end of the downtime.
   I decided against an explicit time so that you can be vague. It can be left empty.

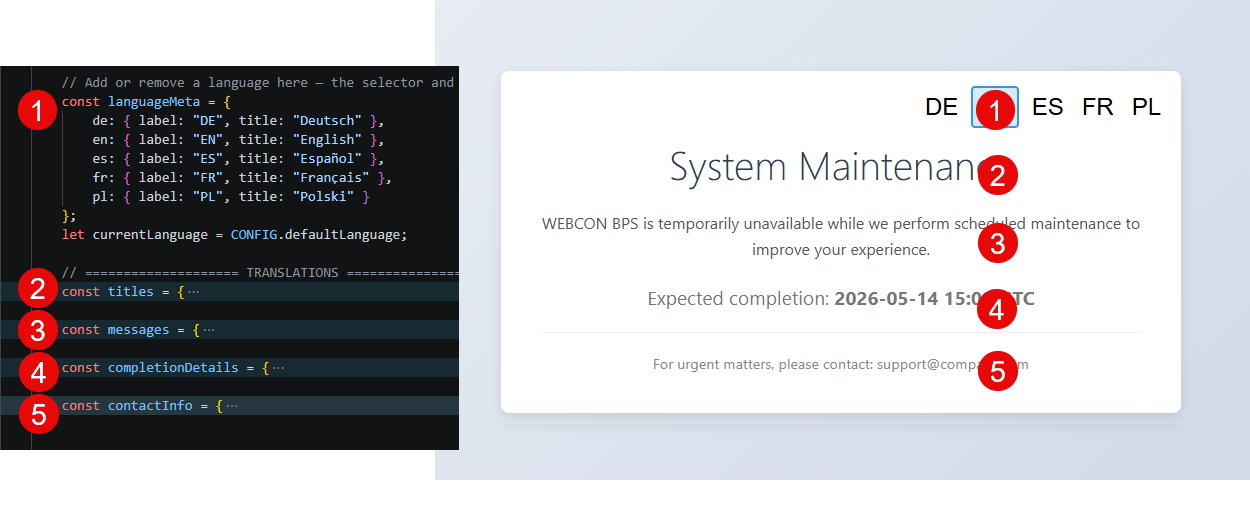

The texts and languages of the maintenance page can be configured.

While I said that some information is required, this only means that the page may look strange without these.

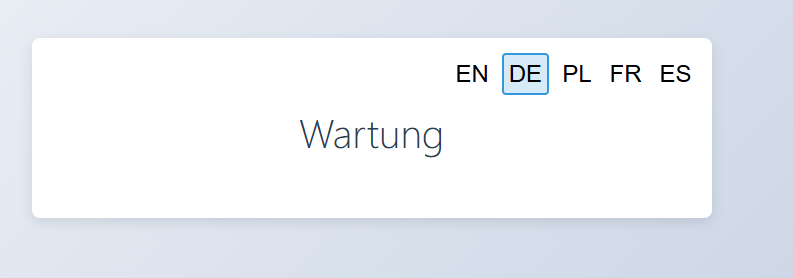

How the page looks, if only the header is defined.

Usage

Activating the maintenance page is quite easy

1. Stop the main WEBCONBPS IIS website.
2. Change the WEBCONBPS HTTPS binding from port 443 → 444.
3. Change the MaintenancePage HTTPS binding from port 4443 → 443.
4. Ensure that the MaintenancePage is running and is not stopped from the last update.
5. Restart the main WEBCONBP IIS website.

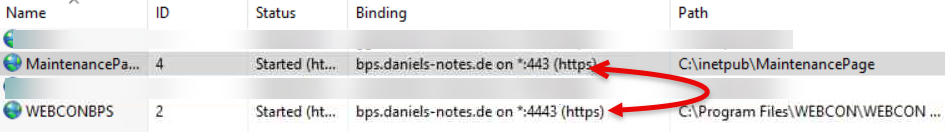

Switch the ports of the IIS sites.

Users navigating to the default URL will now see the maintenance page.

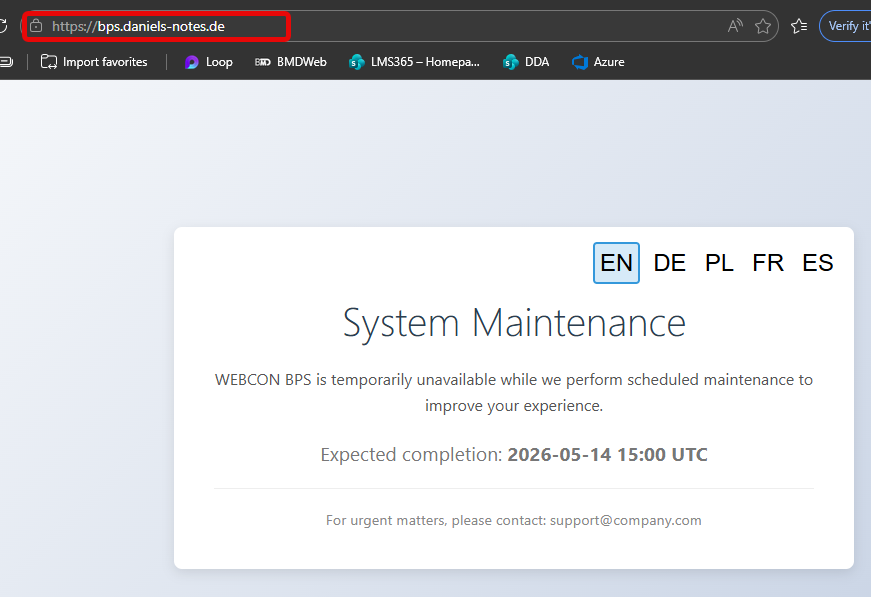

Maintenance page is now displayed for the default URL

This will allow you to install any update, do other maintenance actions in the Portal (1) and also open the Designer Studio (2).

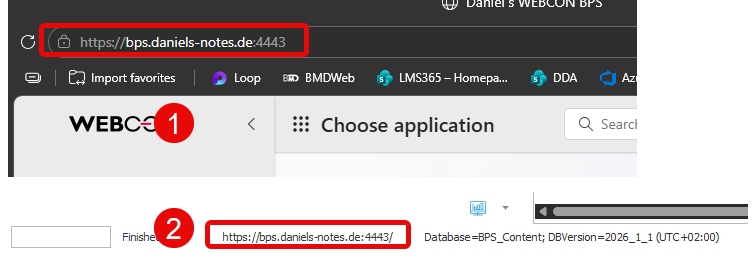

Adding the port will allow you to still access the WEBCON BPS page via Browser (1) and Designer Studio (2).

When you are done you can just revert the steps.

1. Stop the main WEBCONBPS IIS website.
2. Change the MaintenancePage HTTPS binding from port 443 → 4443.
3. Change the WEBCONBPS HTTPS binding from port 4443 → 443.
4. Restart the main WEBCONBP IIS website.
5. Optionally, stop the MaintenancePage

This is a short checklist:

1. Update the completion time in the index.html.
2. Switch the ports, ensure both pages are running.
3. Install the WEBCON BPS update.
4. Do other maintenance.
5. Switch the ports again.

Remarks

Microsoft Entra authentication

If the WEBCON BPS environment uses Microsoft Entra ID (Azure AD) for authentication you will need to add a redirect URI with the alternative port (4443) before the maintenance window. Without it, you won’t be able to login.

https://<your-bps-hostname>:<MaintenancePort>/signin-aad

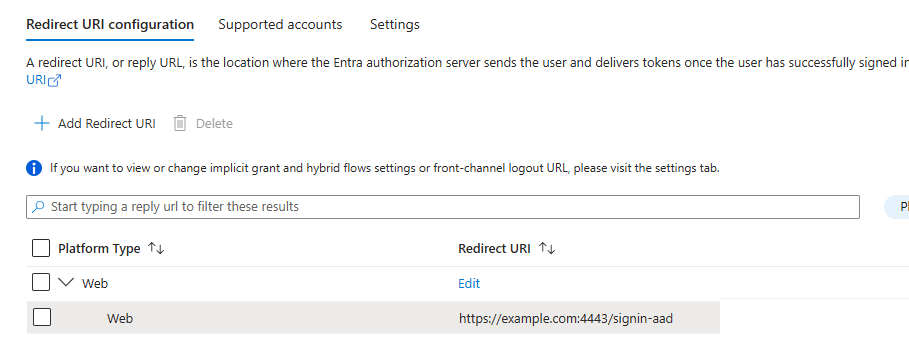

Adding the RedirectURI to the App Registration in Microsoft Entra

Infrastructure considerations

Depending on your network setup, additional changes may be required alongside the IIS binding swap:

• Firewalls / NSGs
  The maintenance port (default 4443) must be reachable from the internet if you want to access WEBCON BPS. The maintenance page would already be accessible after switching to port 443.
  The setup script will add a rule to allow inbound traffic
• Reverse proxies / load balancers
  If BPS is fronted by a proxy, the port swap needs to happen at the right layer. Depending on your setup you may need to adjust the proxy upstream instead of (or in addition to) the IIS binding.
• SSL certificate
  We are only changing the port, we can simply reuse the same SSL certificate.

Maintenance banner

Before entering the maintenance window you can show users an advance notification. There are two options in the WEBCON community:

• Maintenance banner
• Schedule maintenance with notification on homepage

This is an updated version for 2026 which can be added to the CSS:

.top-menu__content--center-node:before {
content: "Planned maintenance 2026-05-14";
color: var(--colorStatusDangerStroke2);
font-size: var(--fontSize36);
}
.top-menu__content--center-node {
    text-align: center;
}

Every user should take notice of it:

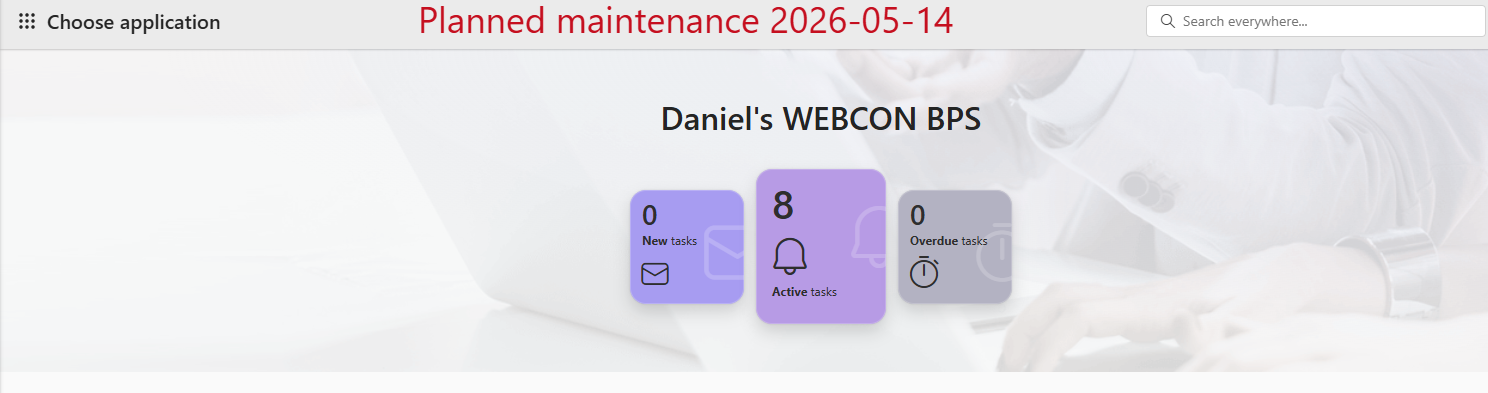

Displaying maintenance information with CSS.

Especially if they don’t use the browser in full screen mode.

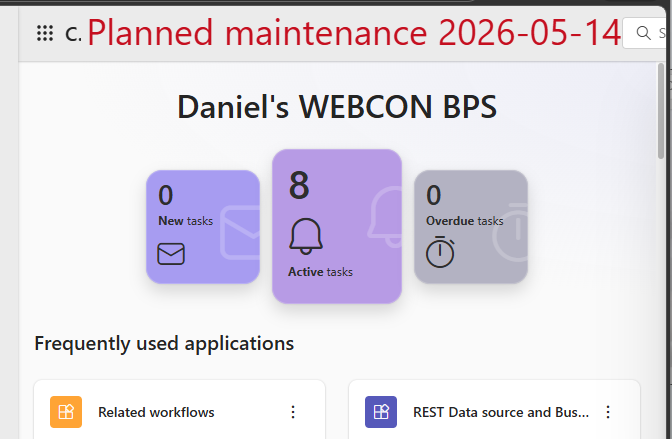

It’s really noticeable in a smaller browser window.

Verify the maintenance information

Of course, you can update the maintenance information and verify that maintenance page is correctly served when you use the maintenance port.

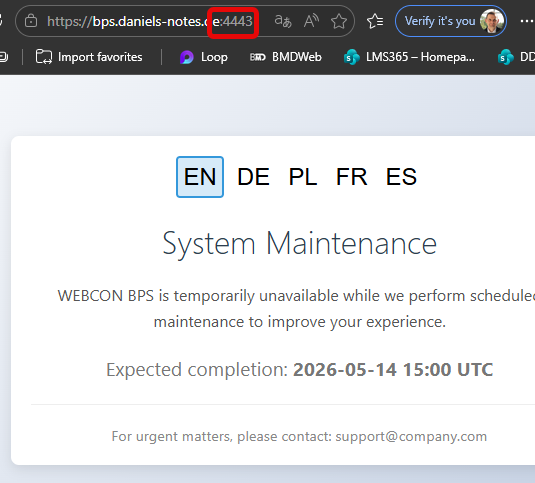

Ensure the correct display of the maintenance page before entering the maintenance windows using the port

Download

You can find the files here.
