User Defined API - Actions on a workflow instance (Part 3)

Overview

This is the third part of my blog post about User Defined APIs. This one is dedicated to running mode Actions on a workflow instance. I think this will be my primary option for creating workflow instances, if I don’t need a generic solution.

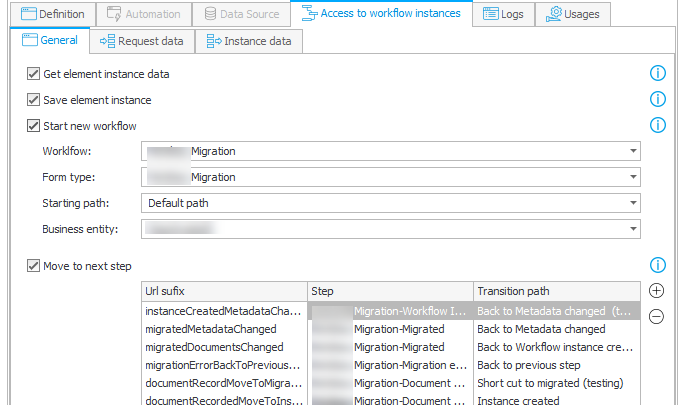

Features of the Actions on a workflow instance running mode

Series

If you have no idea what User Defined APIs are and why you should change this, you should start with the first part of this series:

1. Overview
2. User Defined API - Get data from data sources
3. User Defined API - Actions on a workflow instance
4. User Defined API - Execute automation

Actions on a workflow instance

When to use

I mentioned that I would prefer a User defined API whenever I don’t need to use a generic solution. Let me provide an example.

If I want to migrate the elements of a SharePoint list to workflow instance, I would use the user defined API:

• Create the endpoint with meaningful names.
  The times where you had/wanted to use 8 characters for file names / variables are long gone. While you can infer what a path with the label ‘Reject’ means from the current state of a workflow the label ‘Reject purchase request’ is way easier to grasp, especially if you have multiple approvals in the same workflow and each has the label ‘Reject’.
• Use the documentation fields
• Create the documentation
• Feed AI the documentation and you are mostly done.

In contrast I used the public API when I had to migrate 20 similar SharePoint list from two site collections to four different workflows. In this case it would be a pain to create all these endpoints, especially if the structures of the SharePoint lists differ from each other. Here a mapping file and the public API is way more useful. With similar I mean, that one SharePoint list uses the currency data type and the next one a free text field for the same information.

Benefits

Read / write of item lists

When reading / writing data you can not only retrieve and update fields but also item lists. This is convenient. :)

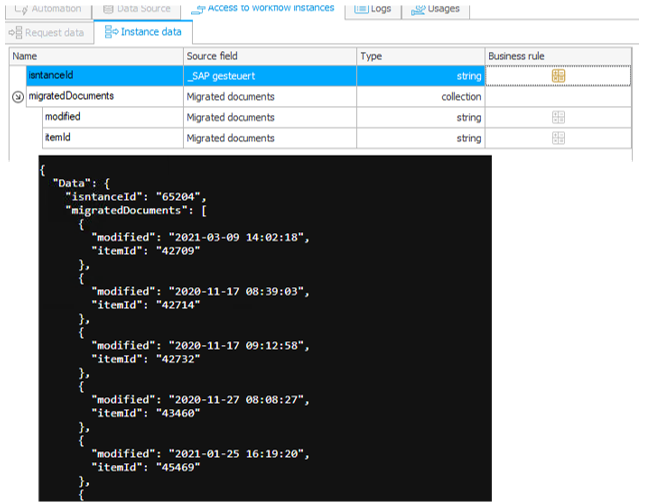

Item lists are supported.

Fun fact: Seconds are returned, too. In case you don’t know why I’m mentioning this: BPS internal views ignore seconds

Using business rules

The best is, you are not even limited to actual fields, but you can use business rules which opens a whole bunch of possibilities.

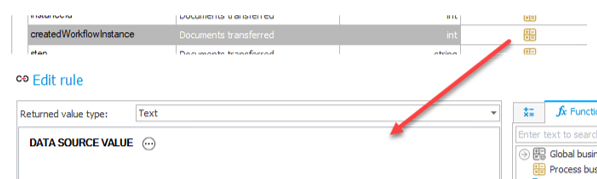

You can use a business rule to return additional information.

You can use these for reading data and updating data. The latter one is like the usage of business rules to process REST action responses.

Predefined paths

In contrast to the public API, you can limit the available paths. This adds an additional security level.

Inconveniences, pitfalls and workarounds

Common to all running modes

There are pitfalls which are common to all running modes which I’ve described in part 1:

• Moving API definitions
• Time and time zones are a never-ending issue in IT
• Logging UDA vs public API
• Errors

403 Forbidden

This is the one running mode which causes the most headaches in regard to setting up the privileges for OAuth authentication. This is my latest checklist:

• App.UserDefAPI.ReadWrite.All permission scope
• Access to the application
• Process, workflow, form type level privileges
• Business entity privileges
• Business entity is enabled

The most annoying thing here is not the 403 forbidden error, but I didn’t find a more helpful error message on the server itself. It’s state of the art, that the underlying reason is not send to the client, but some more information would be helpful on the server.

Attachments are not supported

Unfortunately, there’s no support for handling attachments. If you need this, you will have to fall back to the public API or the internal APIs in the browser.

You may be able to return the base64 string of a single attachment with a business rule, but when you just want to provide a list of attachments, you are out of luck.

Fixed start a workflow instance parameter

While I can understand that the workflow and form type are fixed. I really don’t get it that the business entity is also hard coded. Ok, I can it serves as an additional security layer and the client application doesn’t need to be aware of the id/GUID, but this also means, that you must create a separate endpoint for each business entity. I hope you don’t need to configure this for a two-digit number of entities.

Business entity is also hard coded.

Retrieve data of multiple instances

It’s great that this running mode also offers a GET option, but I don’t understand the current implementation. You can return a single instance, but if you want to return multiple instances, you will need to define another endpoint using the Get data from data source running mode. It would help a lot if the User Defined API supports OData filters.

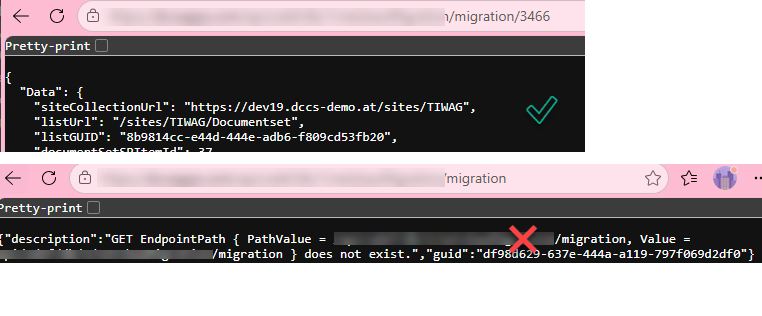

If you omit the instance id, you get an error

Return data of business rules

This is really just an inconvenience, but if you want to return data which are not mapped to fields, you still need to select a field. At least, the system doesn’t enforce that each field can only be selected ones.

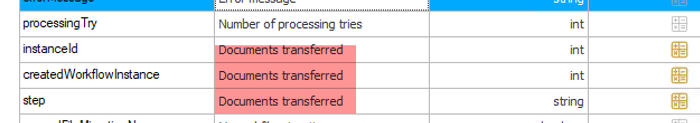

You have to select a field, even if you return data via a business rule.

No support for data rows / data tables

It would be great if you could select data rows like fields and data table like item list, but this isn’t supported. At least you can work around this for data rows, by using a business rule.

No ‘force checkout’ and ‘admin’ mode

This can be an annoying limitation. Especially if you are testing. I don’t know how often I got a 409 Conflict error, because I had checked out the workflow instance in the browser. It’s the same as with those annoying timers.
